Starting capacitor for electric motors, 450V,...

Starting capacitor for electric motors, 450V, capacity: 30µF, 4 pin / M8

Starting capacitor for electric motors, 450V, capacity: 30µF, 4 pin / M8

Name: Starting capacitor for electric motors, 450V, capacity: 30µF, 4 pin / M8
Brand: Tecnid
SKU: MG8300
Price: 6.1 EUR
Availability: InStock

€6.10

Tax included

Reference: MG8300

EAN13: 8003910111882

Scheda Tecnica

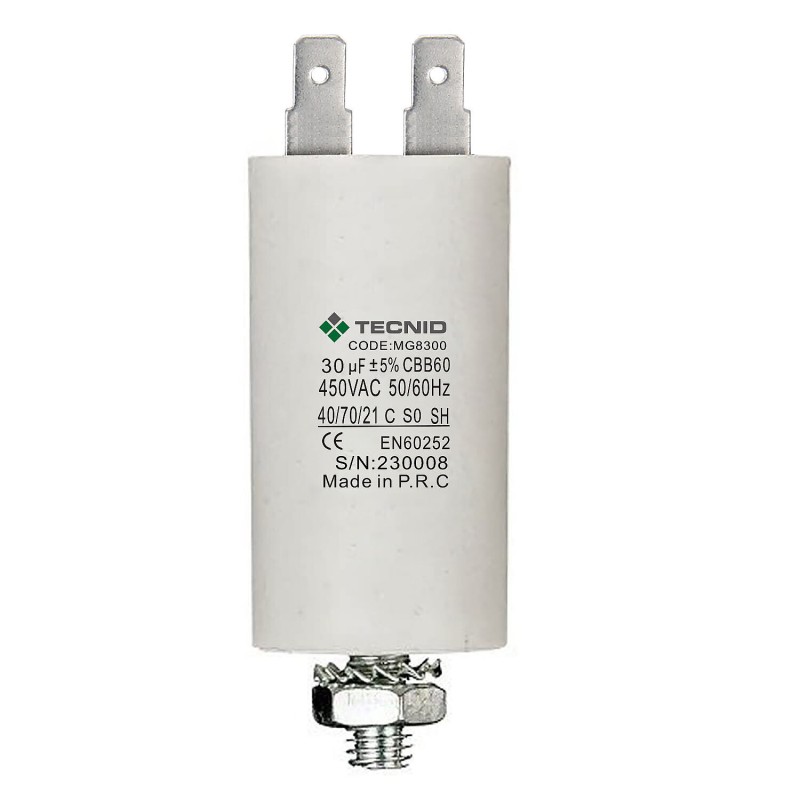

Permanent capacitor for electric motors, 30µF, 450V. M8 nut. Power capacitor. The starting capacitor is in a cylindrical polypropylene container. Electrical connection via 4 terminals.

Description

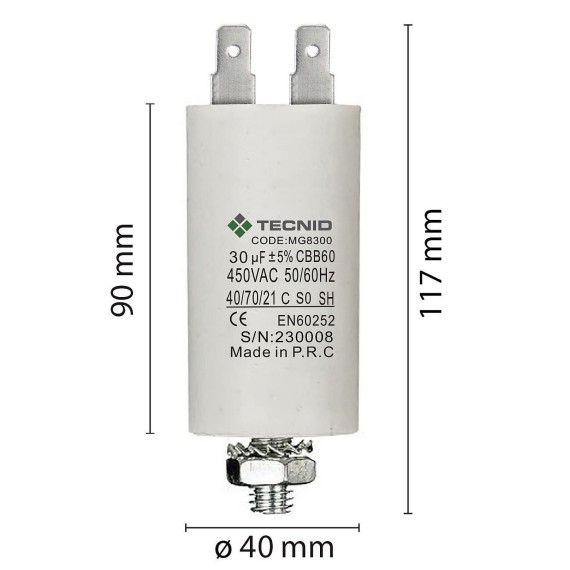

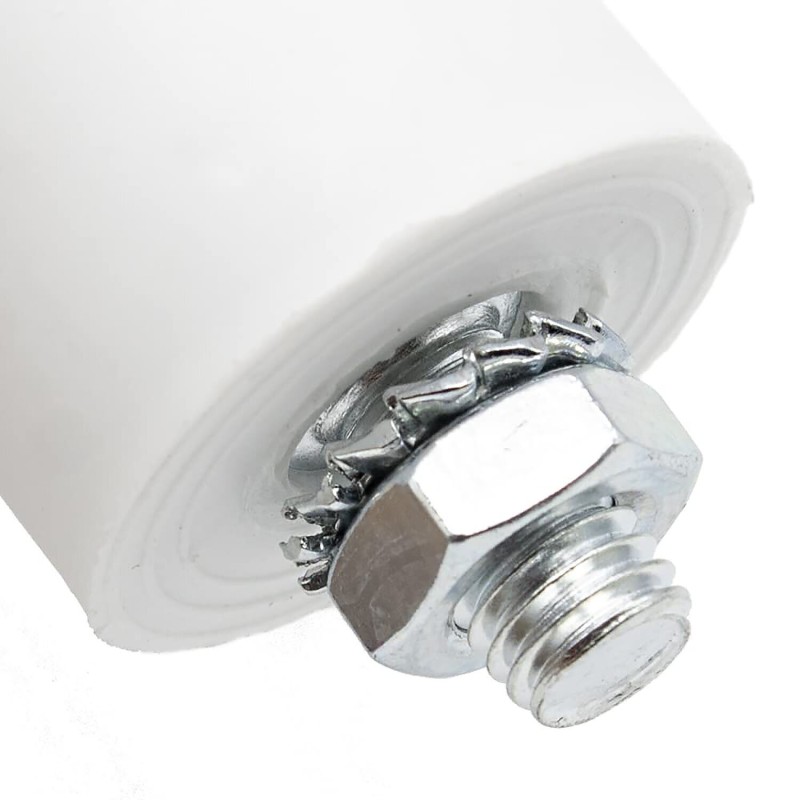

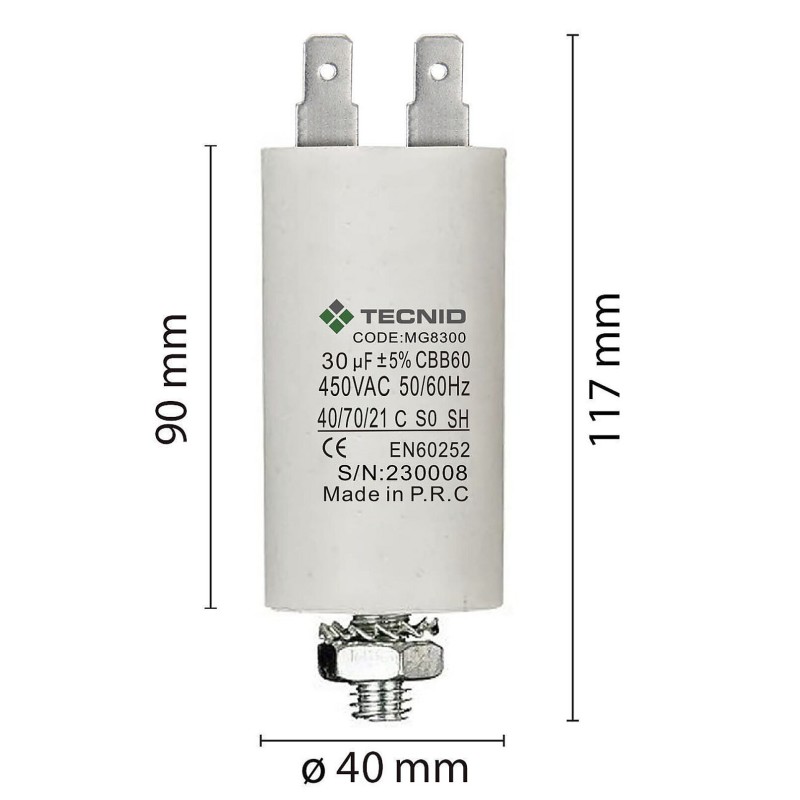

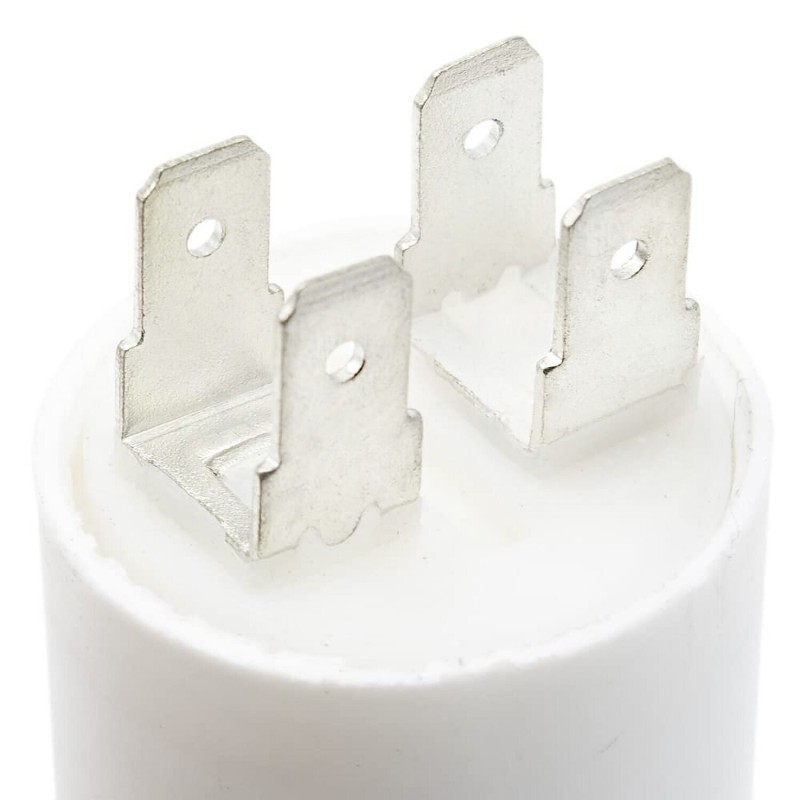

Capacitance: 30µF. Voltage: 450V~. External dimensions (diameter x height): 40*95mm. Electrical connection via 6.4 x 0.8mm faston terminals. Mechanical fixing via threaded rod and M8 nut. Tolerance 5%. Lifespan: 3000 hours. Operating temperature -40°C.~+70°C. The white round capacitor is designed for continuous operation. This type of capacitor is primarily used in single-phase motors, but can also be used in switching circuits, damping, and general applications.

Product Details

Capacity (μF): 30
Power supply: 450V AC
Attachment: M8
Material: PLASTIC
CE Marking: CE
Warranty: 2 YEARS
Width: 40 mm
Depth: 40 mm
Height: 90 mm
Net weight: 0.133 Kg
Packing type: Colour Box
Pack length: 40 mm
Pack width: 125 mm
Pack height: 40 mm
Packed product weight: 0.139 kg
ITF INNER: 18003910111889
Quantity in inner: 10
Inner width: 23 cm
Inner length: 21 cm
Inner height: 14 cm
Gross weight inner: 1.4 kg
ITF MASTER: 28003910111886
Quantity in master: 100
Master length: 44 cm
Master width: 23 cm
Master height: 29 cm
Master gross weight: 15 kg
How many pieces on 80x120 pallet: 2100 pz
INTRASTAT Code: 85322500
Country of origin: CHINA
ECOLOGIC SCALES 2025: N/A
