Starting capacitor for electric motors, 450V,...

Starting capacitor for electric motors, 450V, capacity: 6µF, with 15cm cable

Starting capacitor for electric motors, 450V, capacity: 6µF, with 15cm cable

Name: Starting capacitor for electric motors, 450V, capacity: 6µF, with 15cm cable
Brand: Tecnid
SKU: MG8060C
Price: 3.9 EUR
Availability: InStock

€3.90

Tax included

Reference: MG8060C

EAN13: 8003910115866

Scheda Tecnica

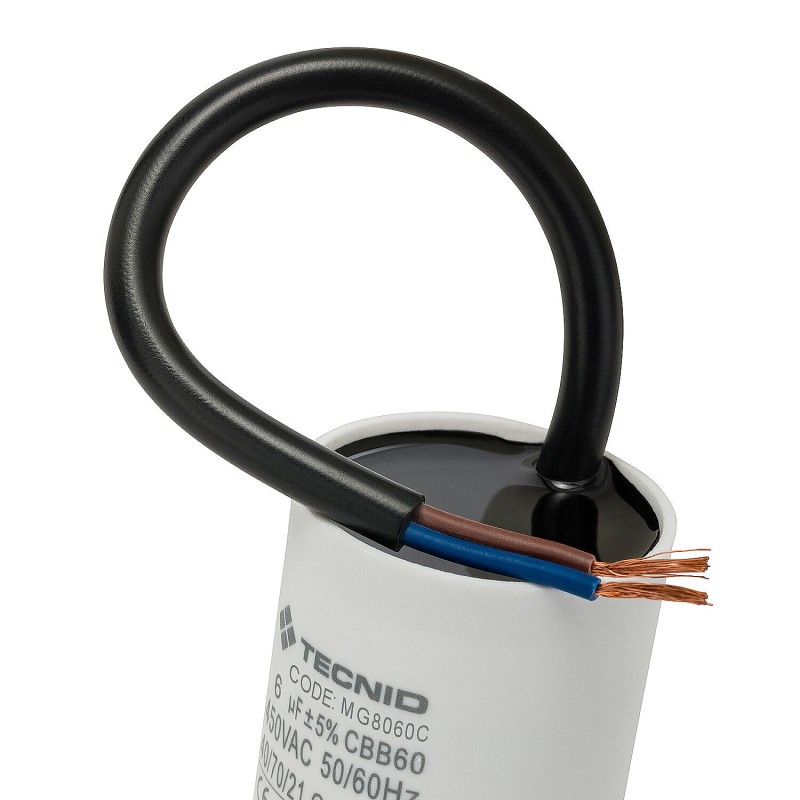

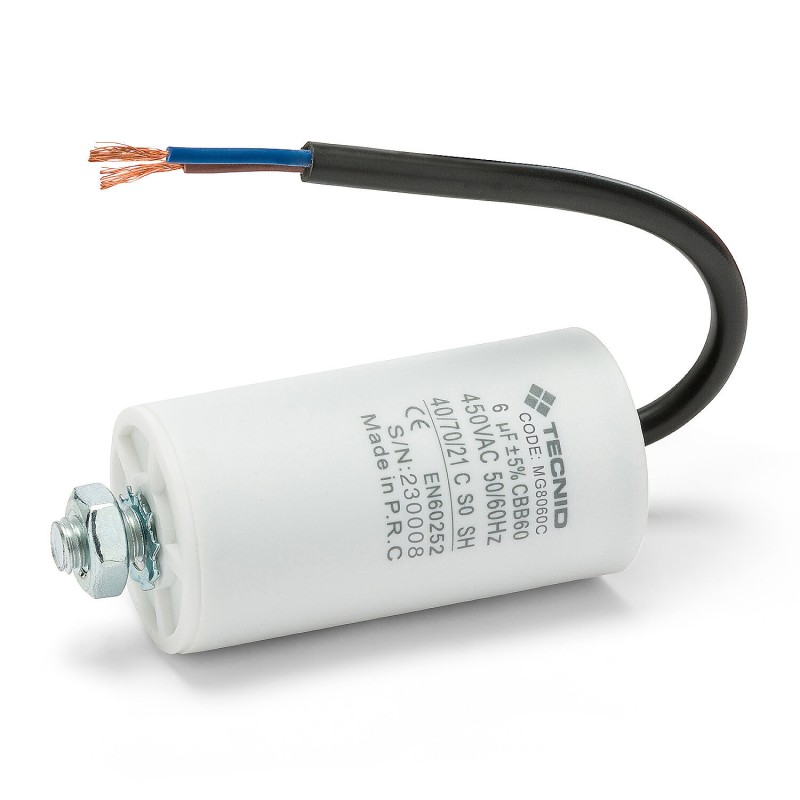

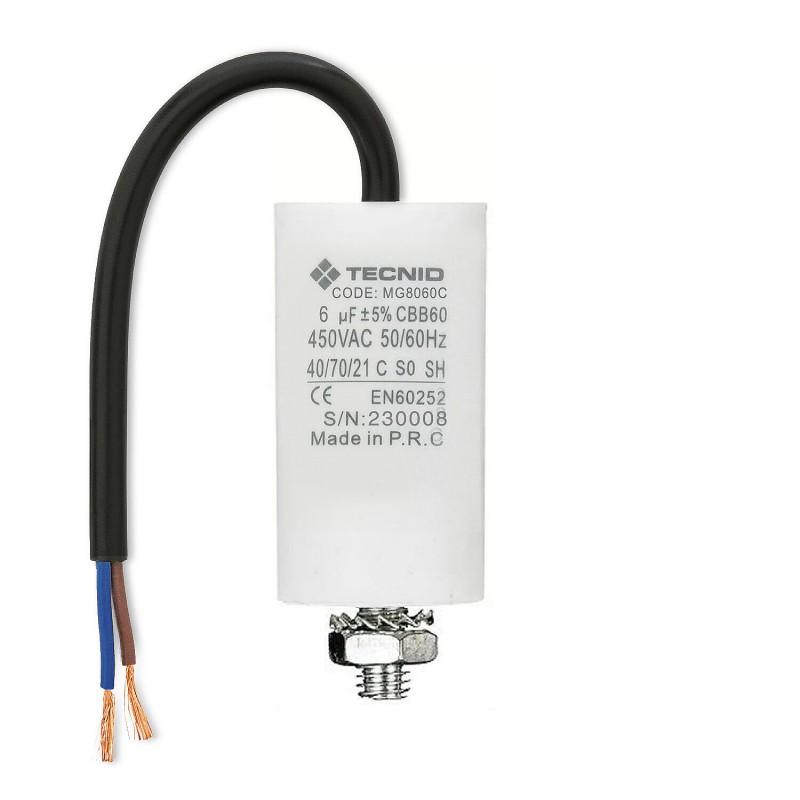

Permanent capacitor for electric motors, 6µF, 450V. M8 nut. Power capacitor. The starting capacitor is housed in a cylindrical polypropylene case. Electrical connection via a 15cm cable.

Description

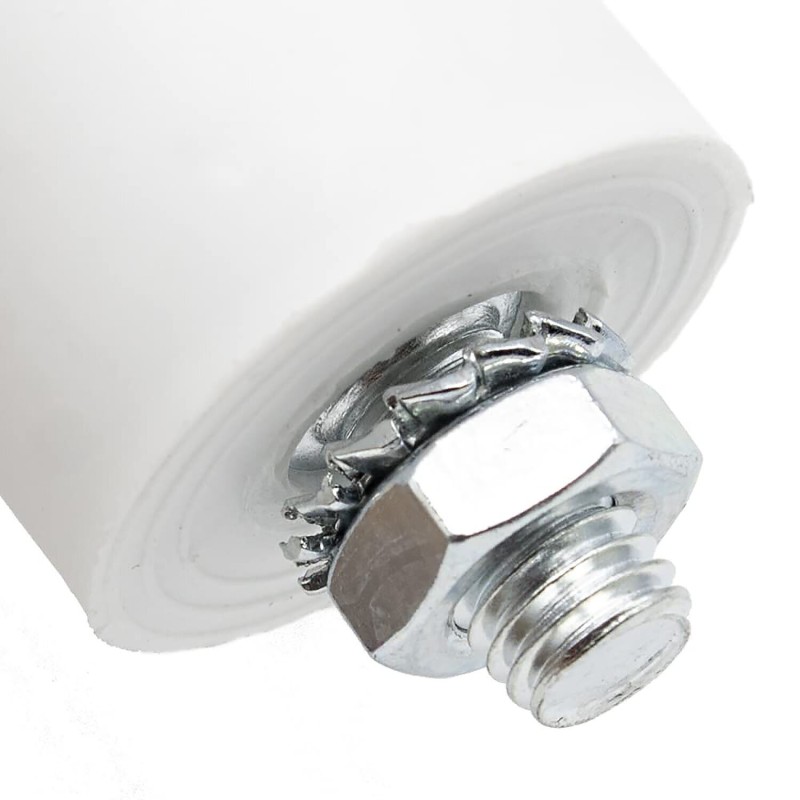

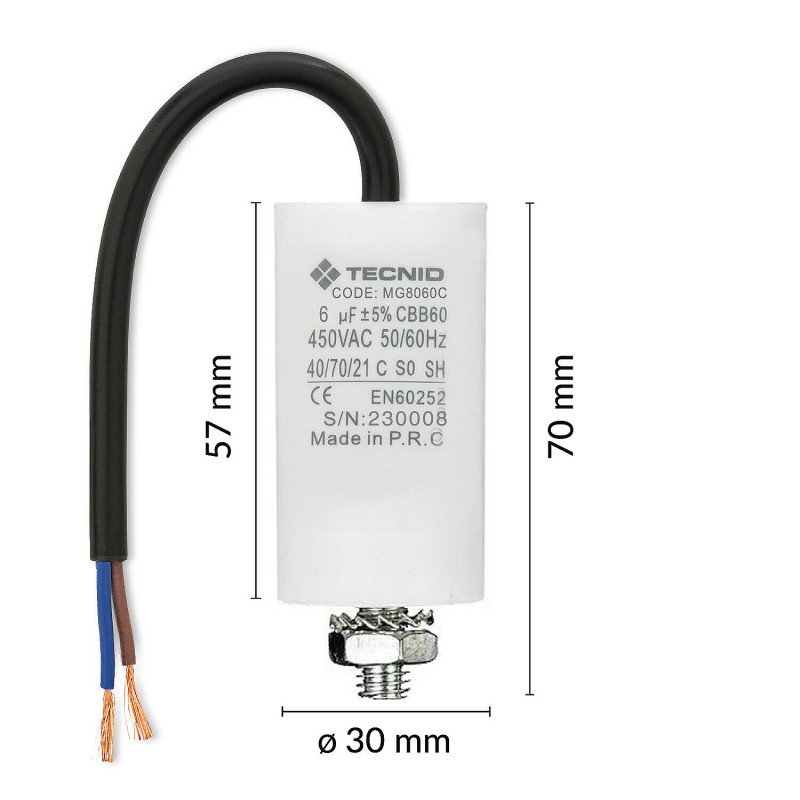

Capacitance: 6µF. Voltage: 450V~. External dimensions (diameter x height): 30*57mm. Electrical connection via 15cm cable. Mechanical fastening via threaded rod and M8 nut. Tolerance 5%. Lifespan: 3000 hours. Operating temperature -40°C.~+70°C. The white round capacitor is designed for continuous operation. This type of capacitor is primarily used in single-phase motors, but can also be used in switching circuits, damping, and general applications.

Product Details

Name: MG8060C
Capacity (μF): 6
Power supply: 450V AC
Power supply provided: NO
Switch: NO
Attachment: M8
Power cord length: 15 cm
Color: WHITE
Material: PLASTIC
CE Marking: CE
Warranty: 2 YEARS
Width: 30 mm
Depth: 30 mm
Height: 57 mm
Net weight: 0.062 Kg
Packing type: Polybag
Pack length: 30 mm
Pack width: 30 mm
Pack height: 80 mm
Packed product weight: 0.062 kg
ITF INNER: 18003910115863
Quantity in inner: 10
Inner width: 23 cm
Inner length: 21 cm
Inner height: 6 cm
Gross weight inner: 0.6 kg
ITF MASTER: 28003910115860
Quantity in master: 50
Master length: 25 cm
Master width: 23 cm
Master height: 23 cm
Master gross weight: 3.5 kg
How many pieces on 80x120 pallet: 3750 pz
INTRASTAT Code: 85322500
Country of origin: CHINA
ECOLOGIC SCALES 2025: N/A
