Starting capacitor for electric motors, 450V,...

Starting capacitor for electric motors, 450V, capacity: 7µF, with 15cm cable

Starting capacitor for electric motors, 450V, capacity: 7µF, with 15cm cable

Name: Starting capacitor for electric motors, 450V, capacity: 7µF, with 15cm cable
Brand: Tecnid
SKU: MG8070C
Price: 3.9 EUR
Availability: InStock

€3.90

Tax included

Reference: MG8070C

EAN13: 8003910115873

Scheda Tecnica

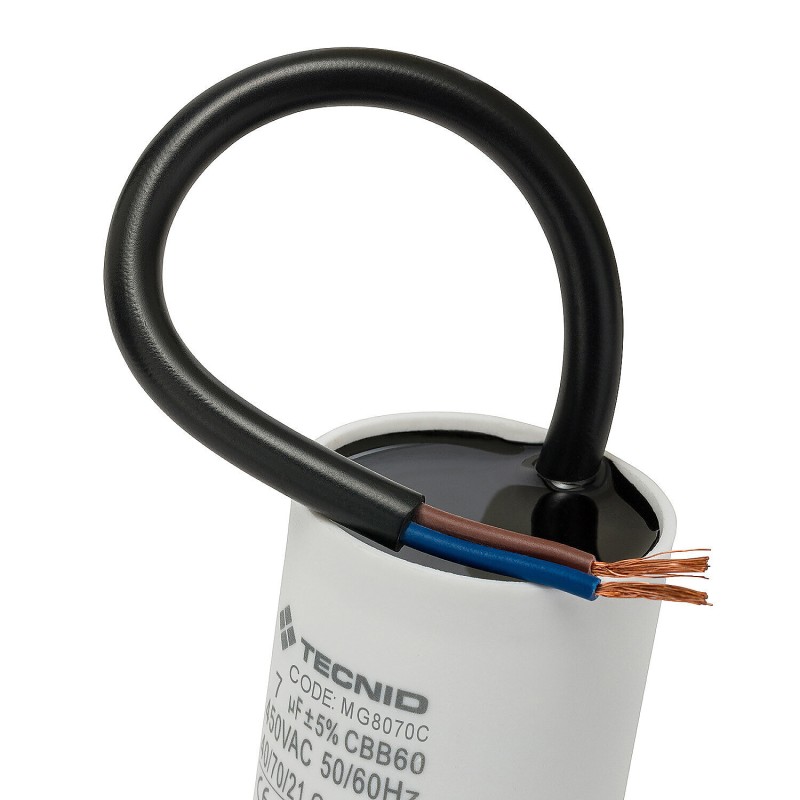

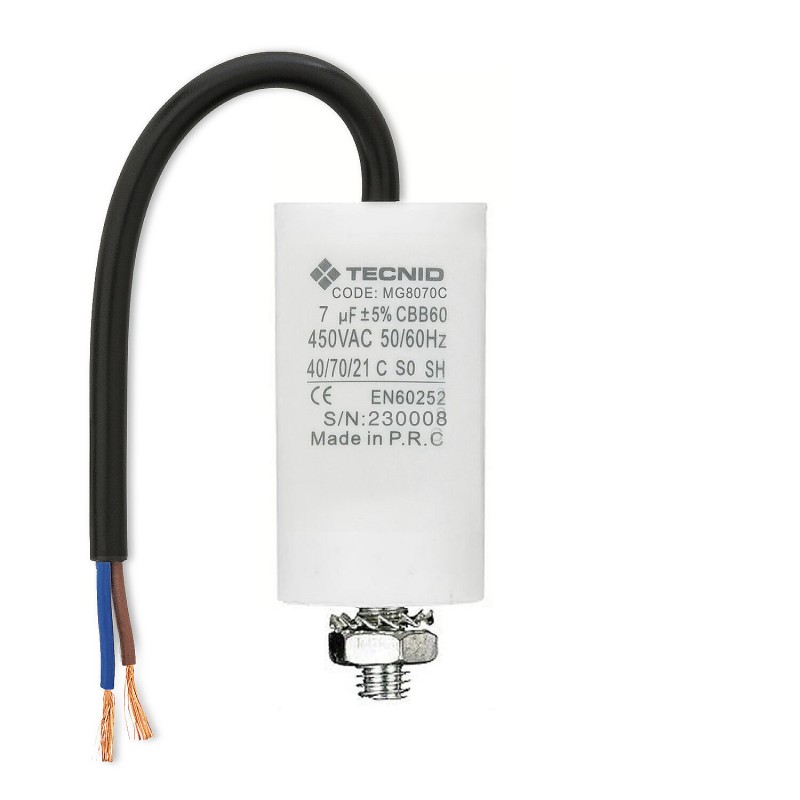

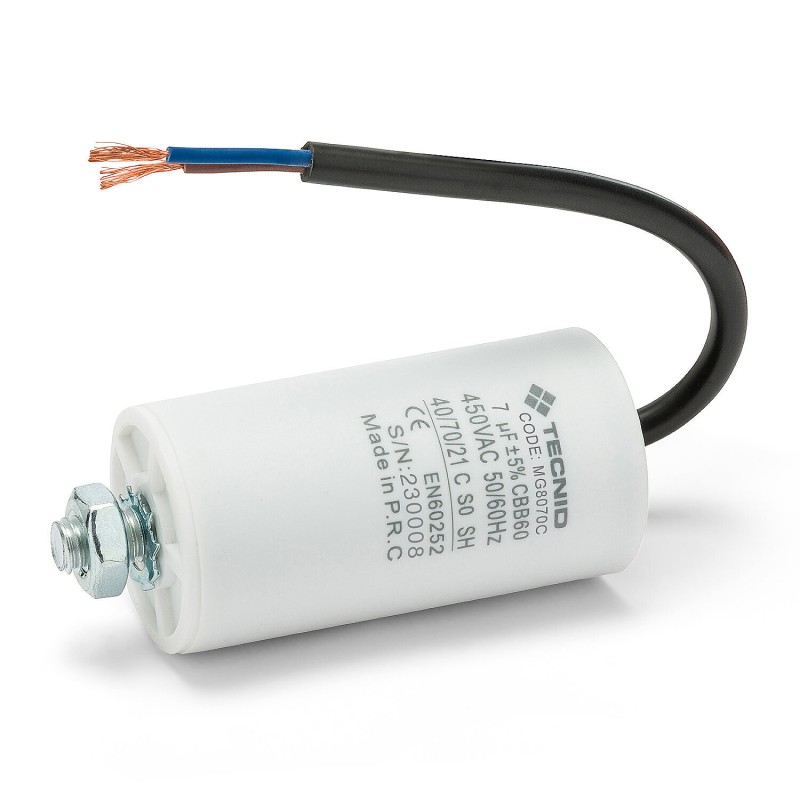

Permanent capacitor for electric motors, 7µF, 450V. M8 nut. Power capacitor. The starting capacitor is housed in a cylindrical polypropylene container. Electrical connection via a 15cm cable.

Description

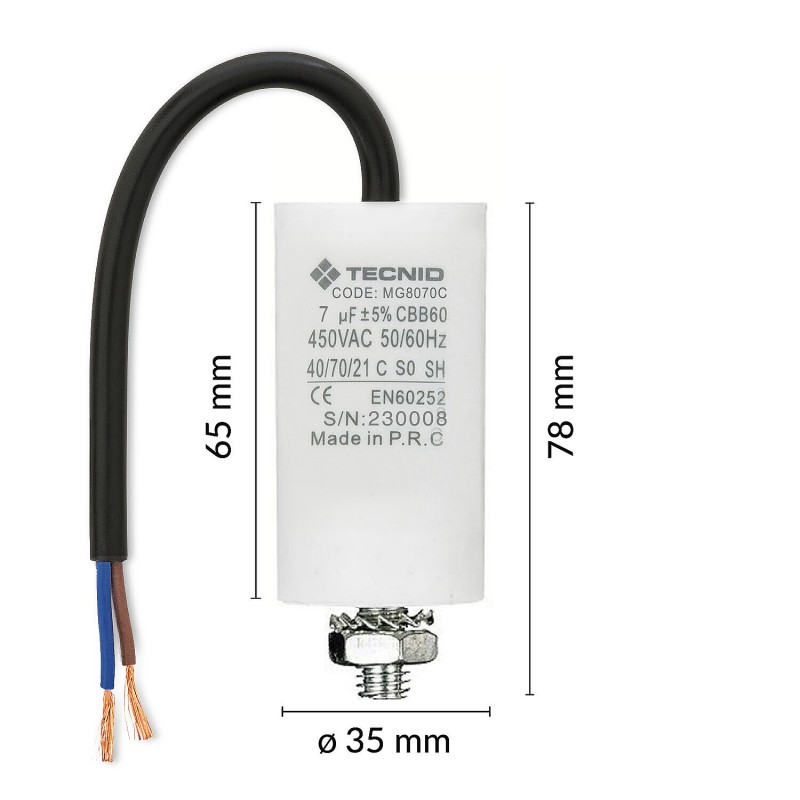

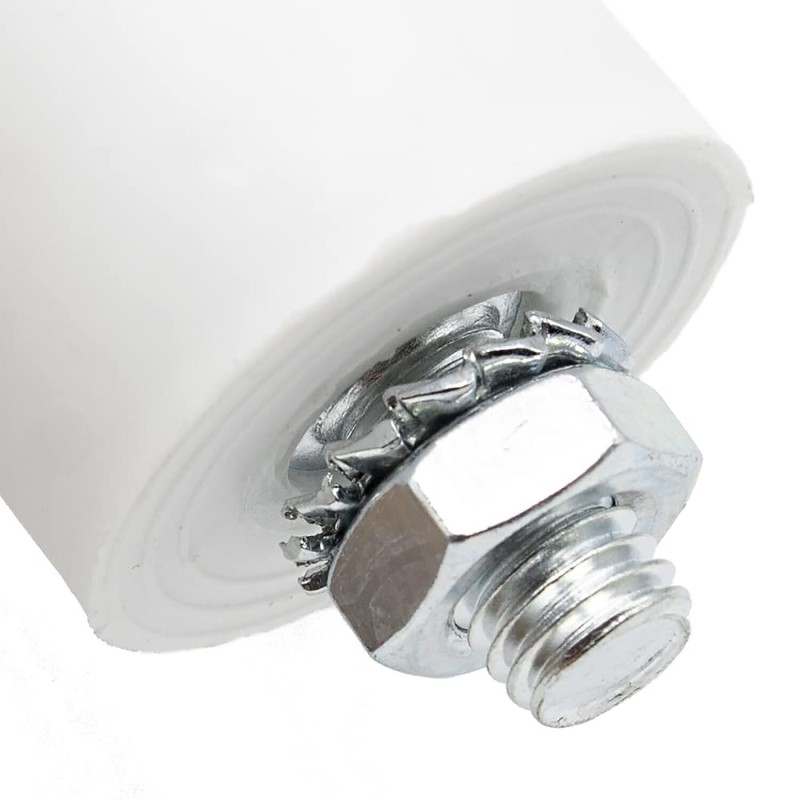

Capacitance: 7µF. Voltage: 450V~. External dimensions (diameter x height): 35*65mm. Electrical connection via 15cm cable. Mechanical fastening via threaded rod and M8 nut. Tolerance 5%. Lifespan: 3000 hours. Operating temperature -40°C.~+70°C. The white round capacitor is designed for continuous operation. This type of capacitor is primarily used in single-phase motors, but can also be used in switching circuits, damping, and general applications.

Product Details

Name: MG8070C
Capacity (μF): 7
Power supply: 450V AC
Power supply provided: NO
Switch: NO
Attachment: M8
Power cord length: 15 cm
Color: WHITE
Material: PLASTIC
CE Marking: CE
Warranty: 2 YEARS
Width: 35 mm
Depth: 35 mm
Height: 65 mm
Net weight: 0.099 Kg
Packing type: Polybag
Pack length: 35 mm
Pack width: 35 mm
Pack height: 90 mm
Packed product weight: 0.099 kg
ITF INNER: 18003910115870
Quantity in inner: 10
Inner width: 23 cm
Inner length: 24 cm
Inner height: 6 cm
Gross weight inner: 1 kg
ITF MASTER: 28003910115877
Quantity in master: 50
Master length: 26 cm
Master width: 23 cm
Master height: 22 cm
Master gross weight: 5.3 kg
How many pieces on 80x120 pallet: 3750 pz
INTRASTAT Code: 85322500
Country of origin: CHINA
ECOLOGIC SCALES 2025: N/A
