Starting capacitor for electric motors, 450V, capacity: 18µF, 4 pin / flat bottom

Starting capacitor for electric motors, 450V, capacity: 18µF, 4 pin / flat bottom

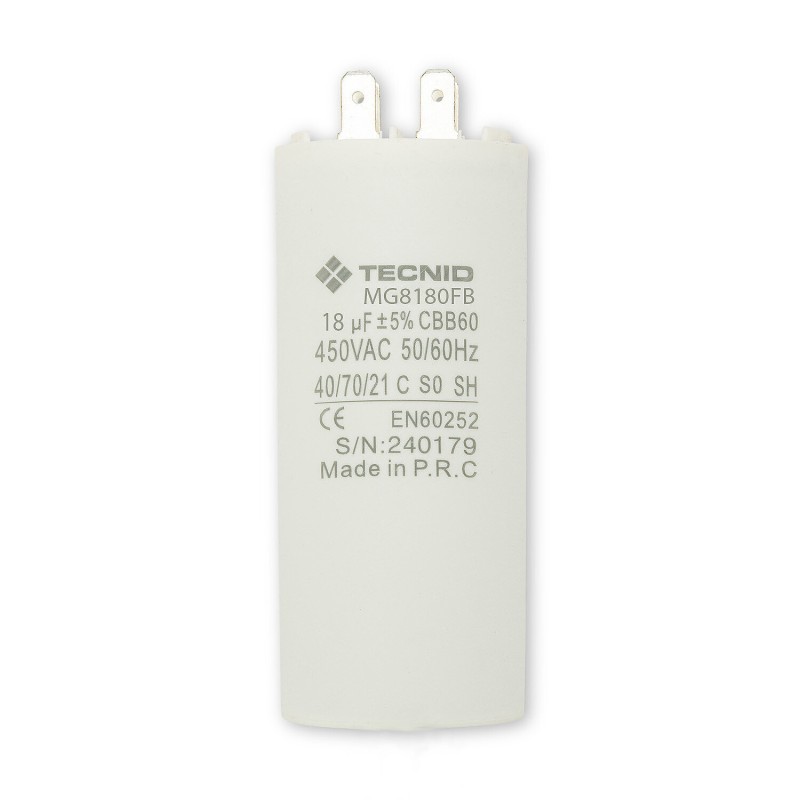

Name: Starting capacitor for electric motors, 450V, capacity: 18µF, 4 pin / flat bottom
Brand: Tecnid
SKU: MG8180FB
Price: 3.95 EUR
Availability: InStock

€3.95

Tax included

Reference: MG8180FB

EAN13: 8003910116597

Scheda Tecnica

Permanent capacitor for electric motors, 18µF, 450V. Power capacitor. Polypropylene cylinder. Electrical connection via 4 terminals. Flat bottom: ideal for submersible pumps.

Description

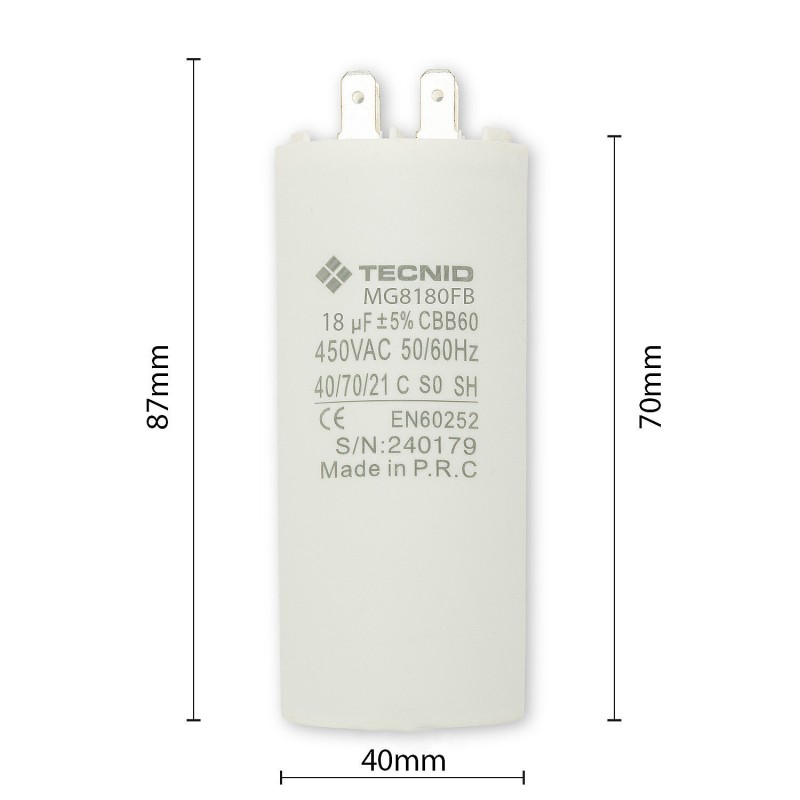

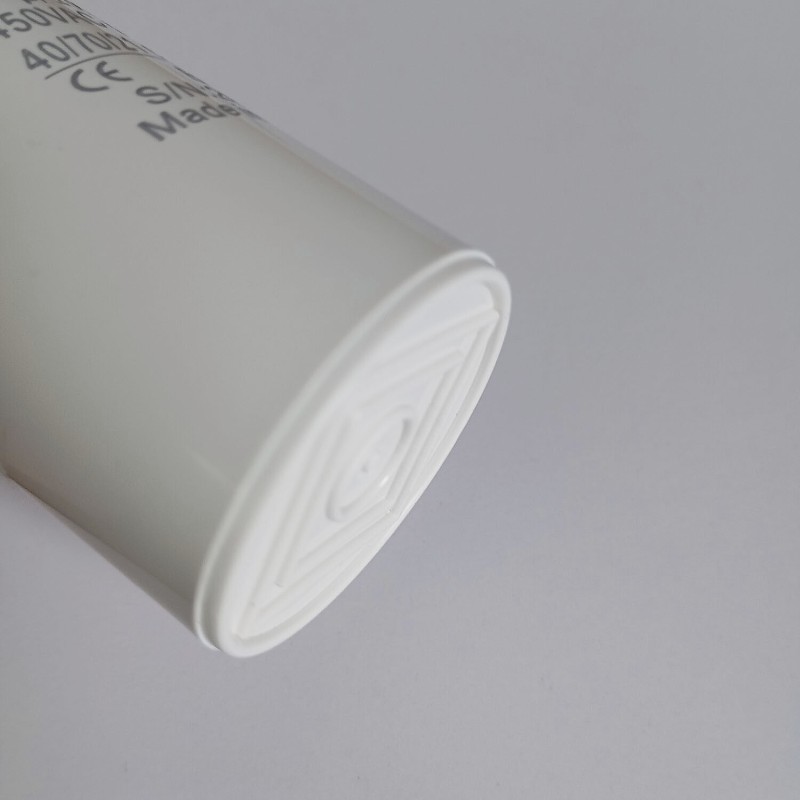

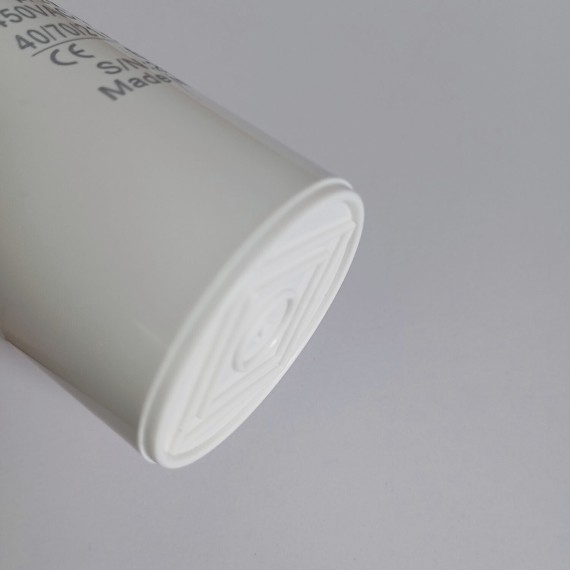

Permanent capacitor for electric motors, 18µF, 450V. Power capacitor. Polypropylene cylinder. Electrical connection via 4 terminals. Flat bottom: ideal for submersible pumps. Capacitance: 18µF. Voltage: 450V~. External dimensions (diameter x height): 40*70mm (without PINs). Electrical connection via 6.4 x 0.8mm faston terminals. With flat bottom: ideal for submersible pumps. Tolerance 5%. Lifespan: 3000 hours. Operating temperature -40°C ~ +70°C.

Product Details

Capacity (μF): 18
Name: MG8180FB
Power supply: 220V AC
Power supply provided: NO
Rated voltage: 450 V
Color: WHITE
Material: PLASTIC - OTHER
CE Marking: CE
Warranty: 2 YEARS
Width: 90 mm
Depth: 40 mm
Height: 40 mm
Net weight: 0.089 Kg
Packing type: Polybag
Pack length: 40 mm
Pack width: 90 mm
Pack height: 40 mm
Packed product weight: 0.09 kg
ITF INNER: 18003910116594
Quantity in inner: 10
Inner width: 23 cm
Inner length: 22 cm
Inner height: 8 cm
Gross weight inner: 0.91 kg
ITF MASTER: 28003910116591
Quantity in master: 150
Master length: 26 cm
Master width: 23 cm
Master height: 22 cm
Master gross weight: 4.81 kg
How many pieces on 80x120 pallet: 3000 pz
INTRASTAT Code: 85322500
