Starting capacitor for electric motors, 450V, capacity: 25µF, 4 pin / flat bottom

Starting capacitor for electric motors, 450V, capacity: 25µF, 4 pin / flat bottom

Name: Starting capacitor for electric motors, 450V, capacity: 25µF, 4 pin / flat bottom
Brand: Tecnid
SKU: MG8250FB
Price: 5.05 EUR
Availability: InStock

€5.05

Tax included

Reference: MG8250FB

EAN13: 8003910117174

Scheda Tecnica

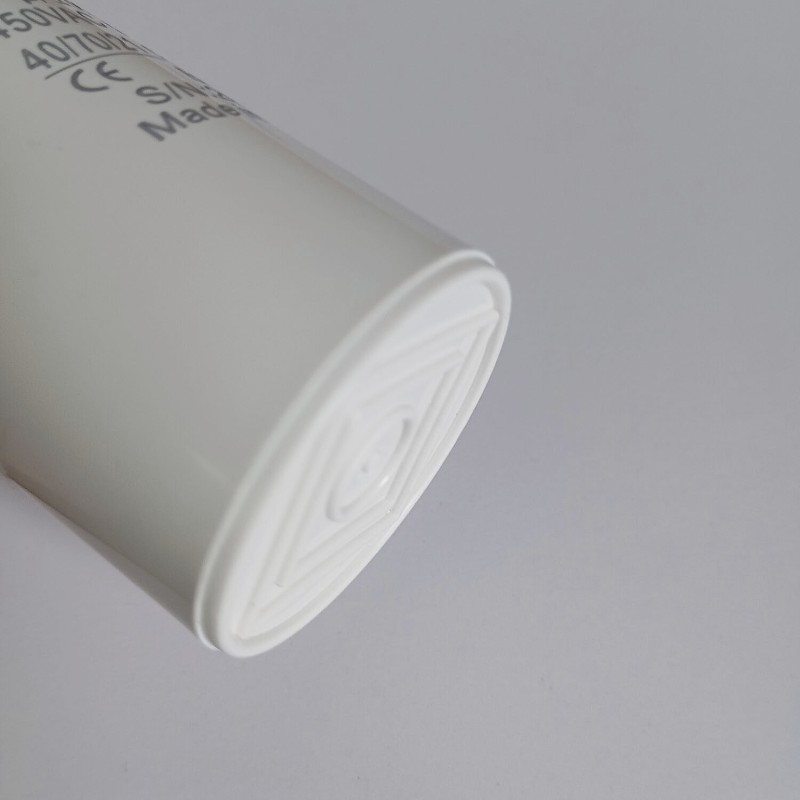

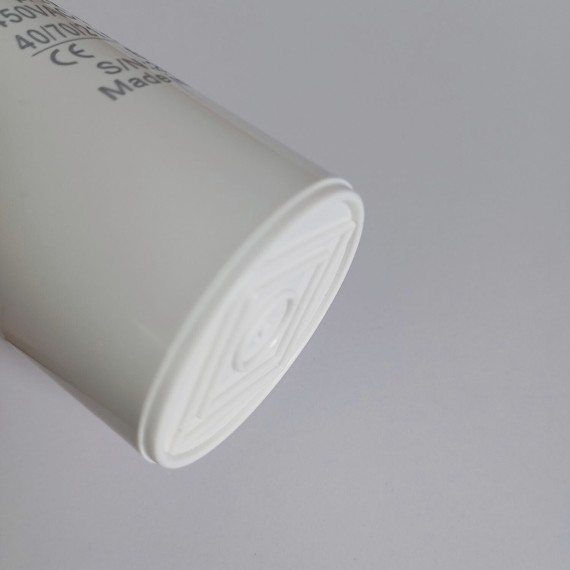

Permanent capacitor for electric motors, 25µF, 450V. Power capacitor. Polypropylene cylinder. Electrical connection via 4 terminals. Flat bottom: ideal for submersible pumps.

Description

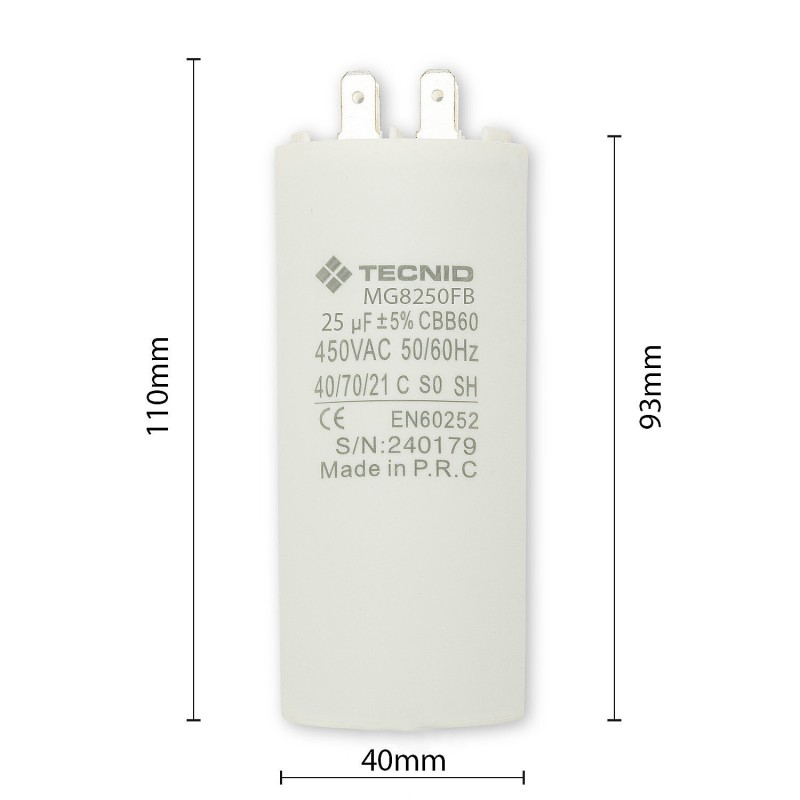

Permanent capacitor for electric motors, 25µF, 450V. Power capacitor. Polypropylene cylinder. Electrical connection via 4 terminals. Flat bottom: ideal for submersible pumps. Capacitance: 25µF. Voltage: 450V~. External dimensions (diameter x height): 40*93mm (without PINs). Electrical connection via 6.4 x 0.8mm faston terminals. With flat bottom: ideal for submersible pumps. Tolerance 5%. Lifespan: 3000 hours. Operating temperature -40°C ~ +70°C.

Product Details

Capacity (μF): 25
Name: MG8250FB
Power supply: 220V AC
Power supply provided: NO
Rated voltage: 450 V
Color: WHITE
Material: PLASTIC - OTHER
CE Marking: CE
Warranty: 2 YEARS
Width: 100 mm
Depth: 40 mm
Height: 40 mm
Net weight: 0.1 Kg
Packing type: Polybag
Pack length: 40 mm
Pack width: 100 mm
Pack height: 40 mm
Packed product weight: 0.11 kg
ITF INNER: 18003910117171
Quantity in inner: 10
Inner width: 23 cm
Inner length: 23 cm
Inner height: 7 cm
Gross weight inner: 1.22 kg
ITF MASTER: 28003910117178
Quantity in master: 100
Master length: 25 cm
Master width: 23 cm
Master height: 22 cm
Master gross weight: 6.41 kg
How many pieces on 80x120 pallet: 3000 pz
INTRASTAT Code: 85322500
