Starting capacitor for electric motors, 450V,...

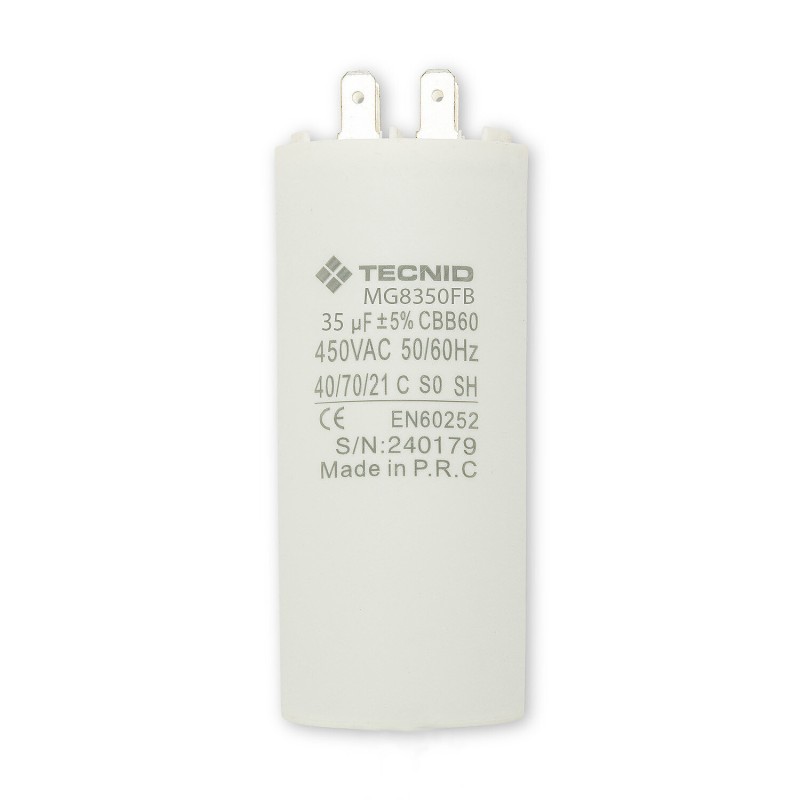

Starting capacitor for electric motors, 450V, capacity: 35µF, 4 pin / flat bottom

Starting capacitor for electric motors, 450V, capacity: 35µF, 4 pin / flat bottom

Name: Starting capacitor for electric motors, 450V, capacity: 35µF, 4 pin / flat bottom
Brand: Tecnid
SKU: MG8350FB
Price: 6.25 EUR
Availability: InStock

€6.25

Tax included

Reference: MG8350FB

EAN13: 8003910117181

Scheda Tecnica

Permanent capacitor for electric motors, 35µF, 450V. Power capacitor. Polypropylene cylinder. Electrical connection via 4 terminals. Flat bottom: ideal for submersible pumps.

Description

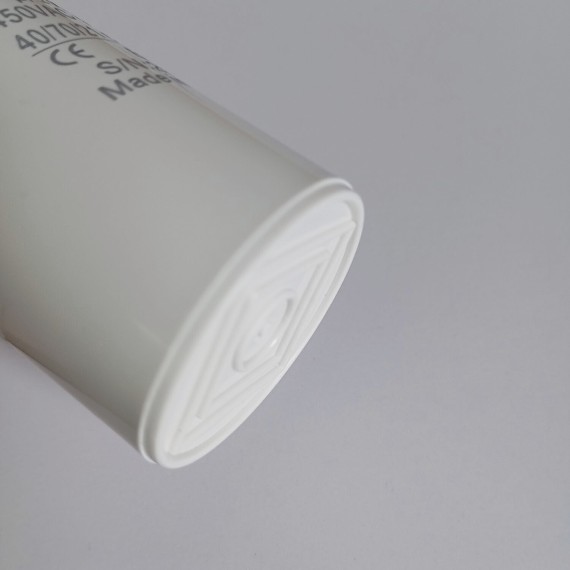

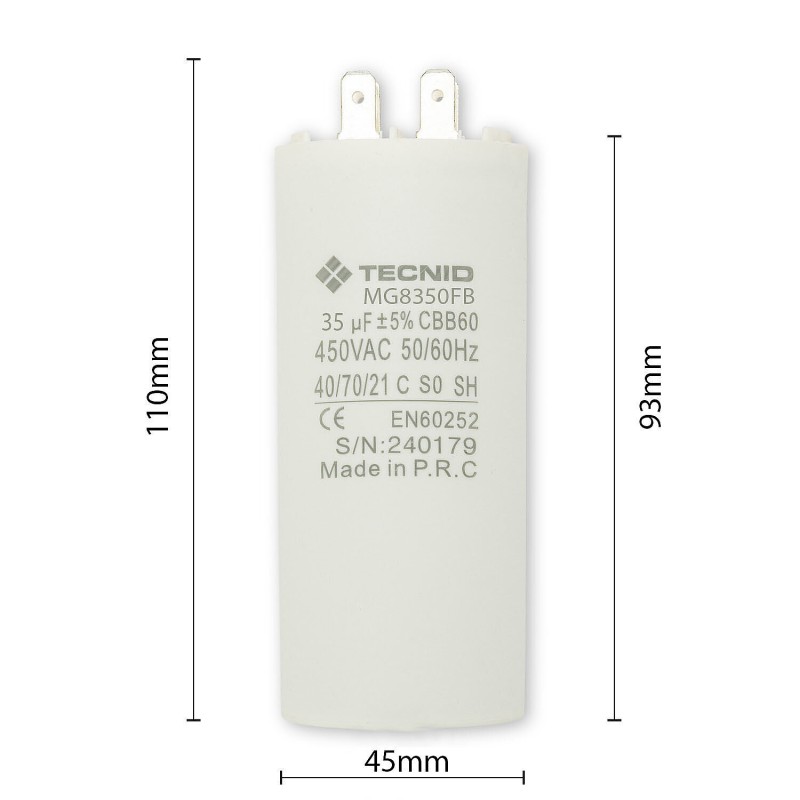

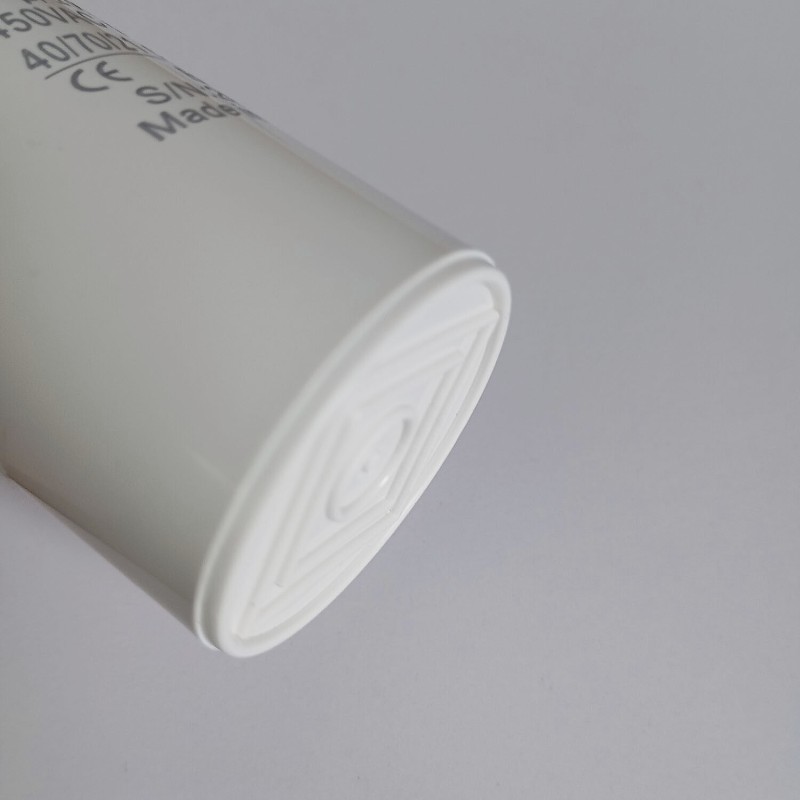

Permanent capacitor for electric motors, 35µF, 450V. Power capacitor. Polypropylene cylinder. Electrical connection via 4 terminals. Flat bottom: ideal for submersible pumps. Capacitance: 35µF. Voltage: 450V~. External dimensions (diameter x height): 45*93mm (without PINs). Electrical connection via 6.4 x 0.8mm faston terminals. With flat bottom: ideal for submersible pumps. Tolerance 5%. Lifespan: 3000 hours. Operating temperature -40°C ~ +70°C.

Product Details

Capacity (μF): 35
Name: MG8350FB
Power supply provided: NO
Power supply: 220V AC
Rated voltage: 450 V
Color: WHITE
Material: PLASTIC - OTHER
CE Marking: CE
Warranty: 2 YEARS
Width: 100 mm
Depth: 40 mm
Height: 40 mm
Net weight: 0.152 Kg
Packing type: Polybag
Pack length: 40 mm
Pack width: 100 mm
Pack height: 40 mm
Packed product weight: 0.153 kg
ITF INNER: 18003910117188
Quantity in inner: 10
Inner width: 27 cm
Inner length: 28 cm
Inner height: 9 cm
Gross weight inner: 1.56 kg
ITF MASTER: 28003910117185
Quantity in master: 100
Master length: 45 cm
Master width: 27 cm
Master height: 22 cm
Master gross weight: 8.27 kg
How many pieces on 80x120 pallet: 1500 pz
INTRASTAT Code: 85322500
